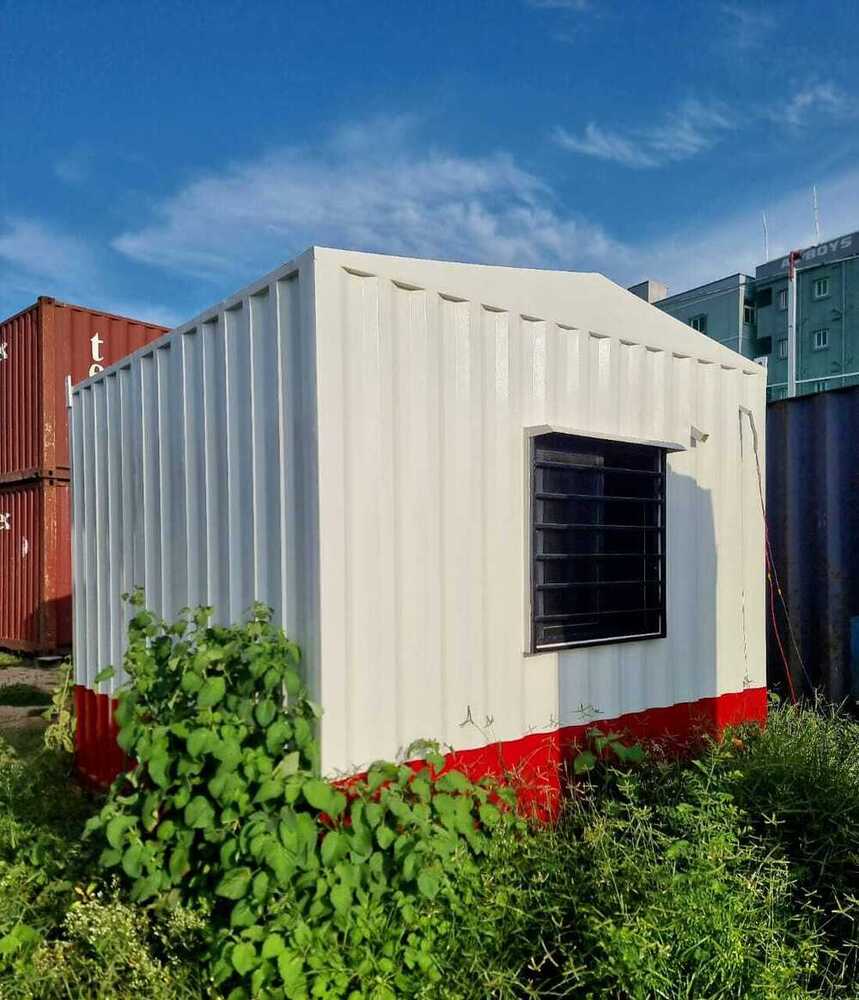

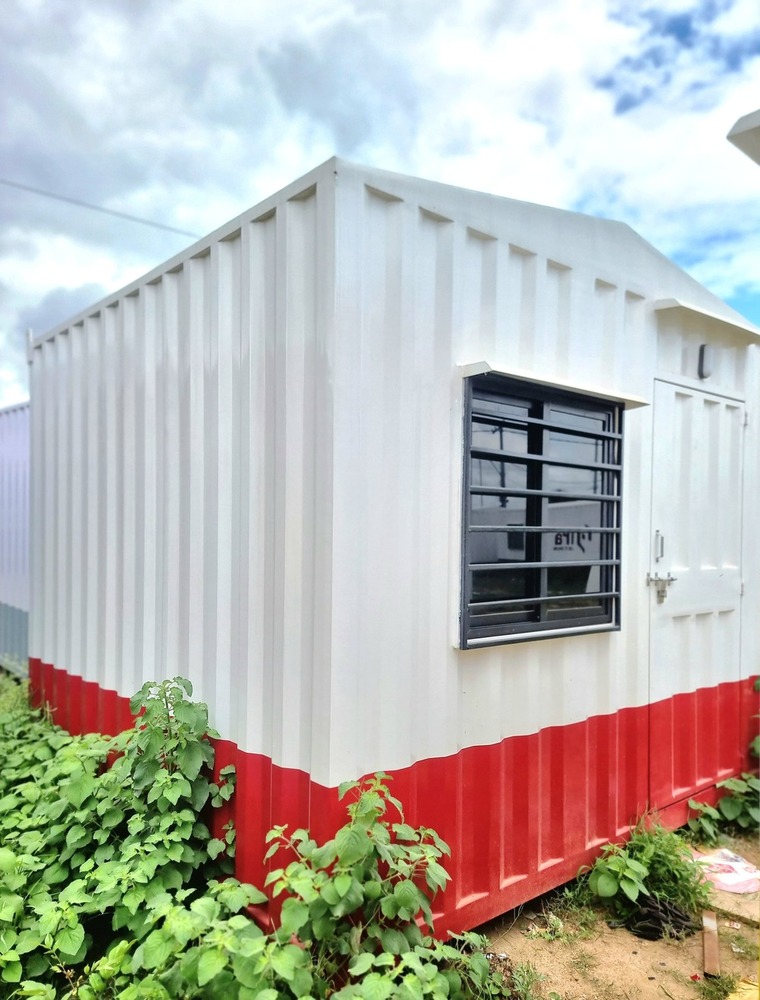

office portable cabin ( 10 x 10 )

About office portable cabin ( 10 x 10 )

Office portable Cabin 10 x 10 Technical Specifications

*Manufacturer Bombay Containers and Cabins

*Size 10 ft x 10 ft (Office Cabin)

*Location Hyderabad

*Contact +91 9550574084, +91 9701364084

*Website (https://www.bombaycontainers.in)

Email: (bombaycontainer24@gmail.com)

---

*Structure & Framework*

* *Bottom Frame

 * C-channel of 100x50x3 mm (ISI Marked)

* *Bottom Stiffener

 * Square Pipe of 100 x 50, Square Pipe of 80x40, 50x50 Square Pipes (ISI Marked)

* *Top Frame & Stiffener

 * Frame: 50x50 Square Pipes (ISI Marked)

 * Top Stiffeners: 50x50, 50x25 & 25x25 Square Pipes (ISI Marked)

* *Side Stiffeners

 * Corner Posts: 50x50 ISI Marked

---

*Walls, Ceiling & Roofing*

* *External Wall Paneling

 * Specially Corrugated GI Sheet (1 mm Thick) welded on MS Frame (ISI Marked)

* *Internal Wall Paneling

 * Neatly & Smoothly finished with Aluminum Sections

* *Roof (Outside)

 * 1 mm thick GI Sheet, Sloped & Water-Tight (ISI Marked)

* *False Ceiling

 * 8 mm MDF, finished with Aluminum

---

*Openings & Fixtures*

* *Sliding Windows

 * Double Shutter (1.2 mm thick) with 4 mm one-way glass

 * Outside safety grill & canopy above window

* *Main Door

 * External opening type, same material as wall

 * Aluminum panel & canopy above

 * Standard hardware locks with Al-drop lock

---

*Insulation*

* *Glass Wool Insulation

 * Thickness: 25 mm

 * Density: 16 kg

 * Applied to Top & Side walls for heat resistance

---

*Electrical Wiring*

* *Wiring Type

 * Concealed PVC Insulated Copper Wires (ISI Quality)

 * For 240 Volts, 50 Hz Single Phase AC Supply

 * MCB-protected

 * AC Split Point Included

* *MCB & Cable Details

 * Main Supply & AC: 4 mm

 * Fan & Light: 1.5 mm

 * Neutral: 2.5 mm

 * Sockets: 2.5 mm

 * Earthing: 1 mm

---

*Paint Finish*

* *Painting

 * 2 Coats of Epoxy Primer & Paint (Weather-resistant finish)

---

*Lifting & Handling*

* *Hooks

 * Specially Formed Hooks for Easy Lifting & Shifting
